Product Description

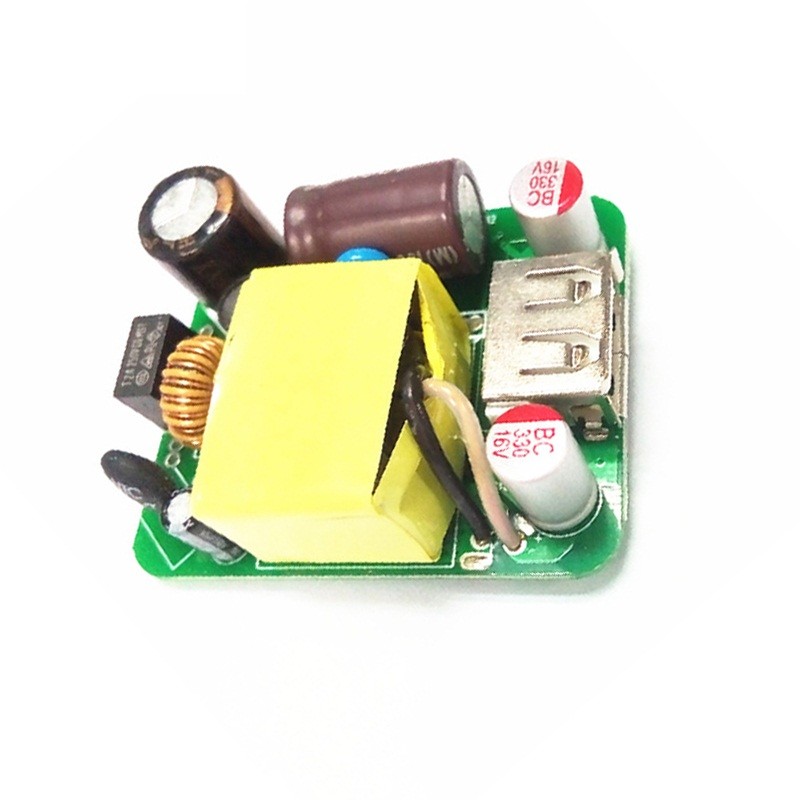

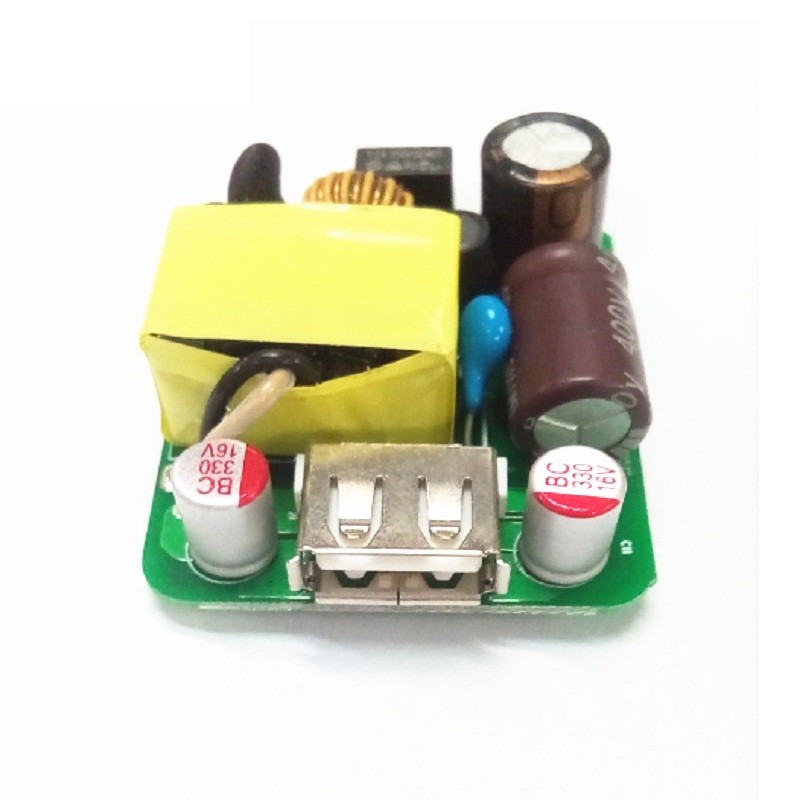

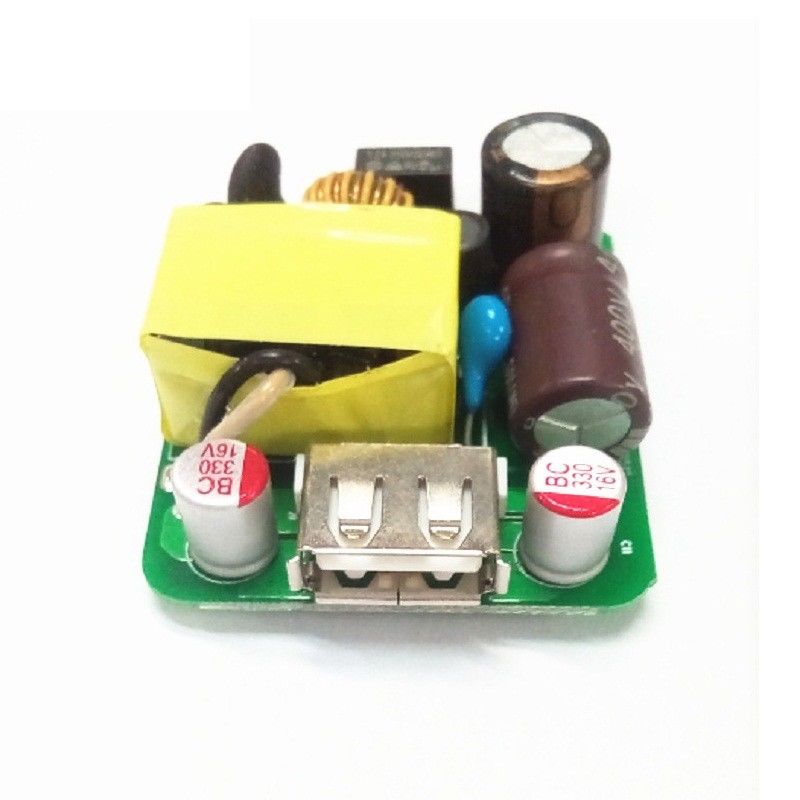

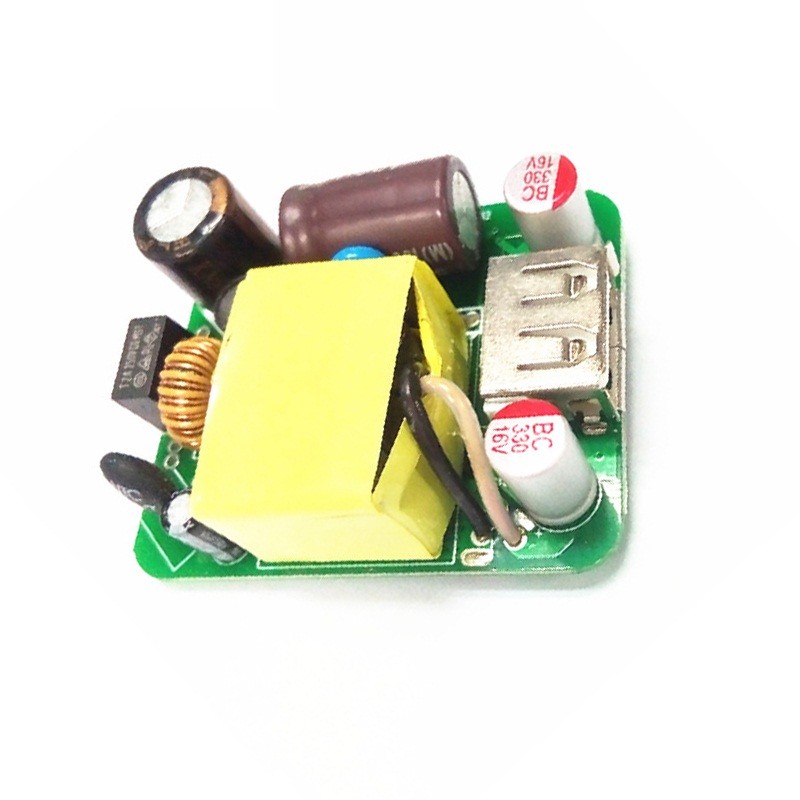

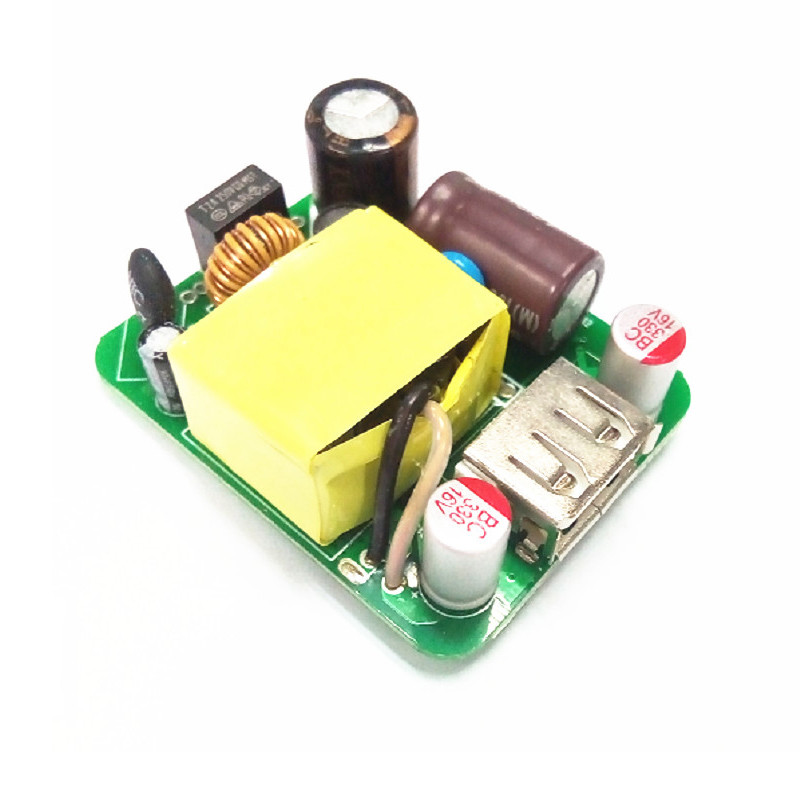

QC18W Pcb Circuit Board module 5V 9V QC3.0 Fast Charging Usb Charger Pcb Printed Circuit Board Assembly
Overview
It is a AC-DC 18W power supply module. It provides a stable 5V/9V power supply.
Feature:
1. Fixed voltage output
2. Support over current protection
3. Support short circuit protection
4. Support over voltage protection
5. Built-in heat sink
Parameter:
1. Input Voltage: AC 110/240V
2. Output Voltage:DC 5V/9V
3. Output Current:2.1A(Max)
4. Output Power:18W(Max)
5. AC frequency:50Hz/60Hz
6. Conversion efficiency:85%
7. Over Current Protection:Yes
8. Short Circuit Protection:Yes
9. Over voltage protection:Yes
10. Operating Temperature:-20℃~85℃
11. Operating Humidity: 5%~95%RH
Appliction:
1. Ordinary power supply
2. Battery charger
3. LED drive power
4. Instrument voltage display
5. Test meter
6. Circuit test
7. Power conversion
Specification:
| Specifications |
| Model No |
APS-CB2019 |
| Applications |
Wall Charger, Fast Charger, Quick charger 3.0 Charger
PD charger, Travel adapter, Universal Adapter, Multi USB chargers, Type C charger and so on…..
|
| Technology |
Fast Charge, QC 3.0 |
| Input |
AC100V-240V(Standard)
Contact us for more wider range.
|
| Output |
18W |
| USB A 5V 3A/ 9V 2A |
| Efficiency(Full load) |
85-90% |
| Safety Protection |
Over Voltage Protection
Over Current Protection
Short Circuit Protection
Over Hot Protection
|
| Burn in |
100% |
| MTBF |
5000Hours |
Lead time:
| Quantity(piceces) |
1k~30K |
30K~50K |
50k~100k |
over 100k |
| Lead time |
20 work days |
30 work days |
40 work days |
Negotiation |
Shipping :
1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged
during delivery.
