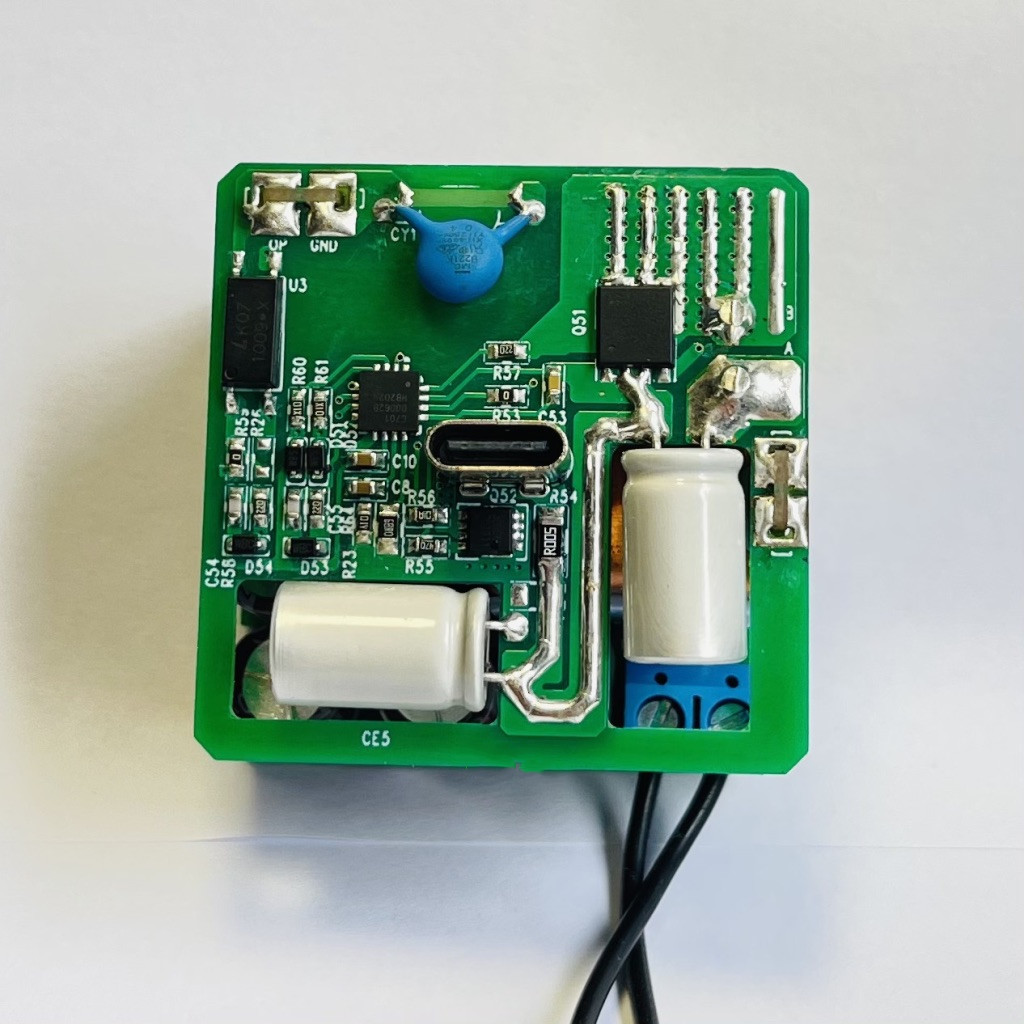

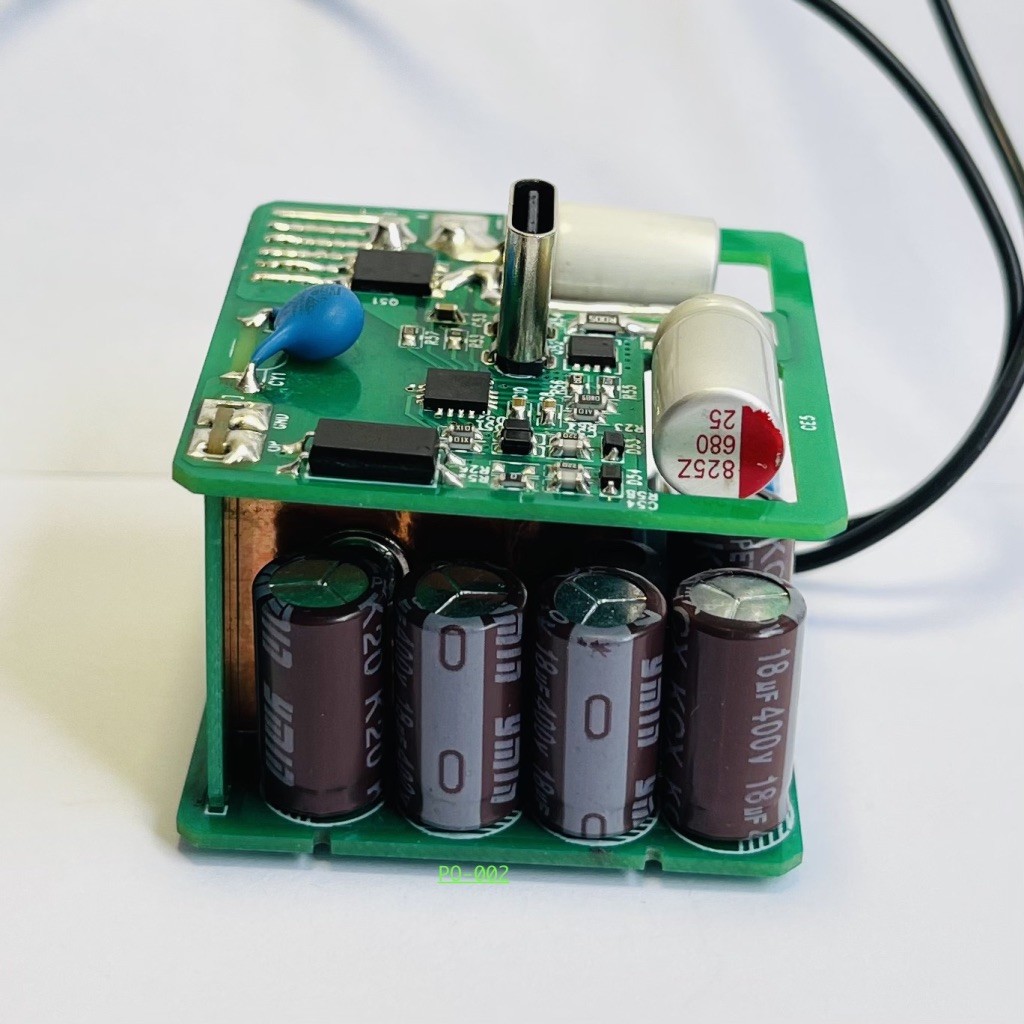

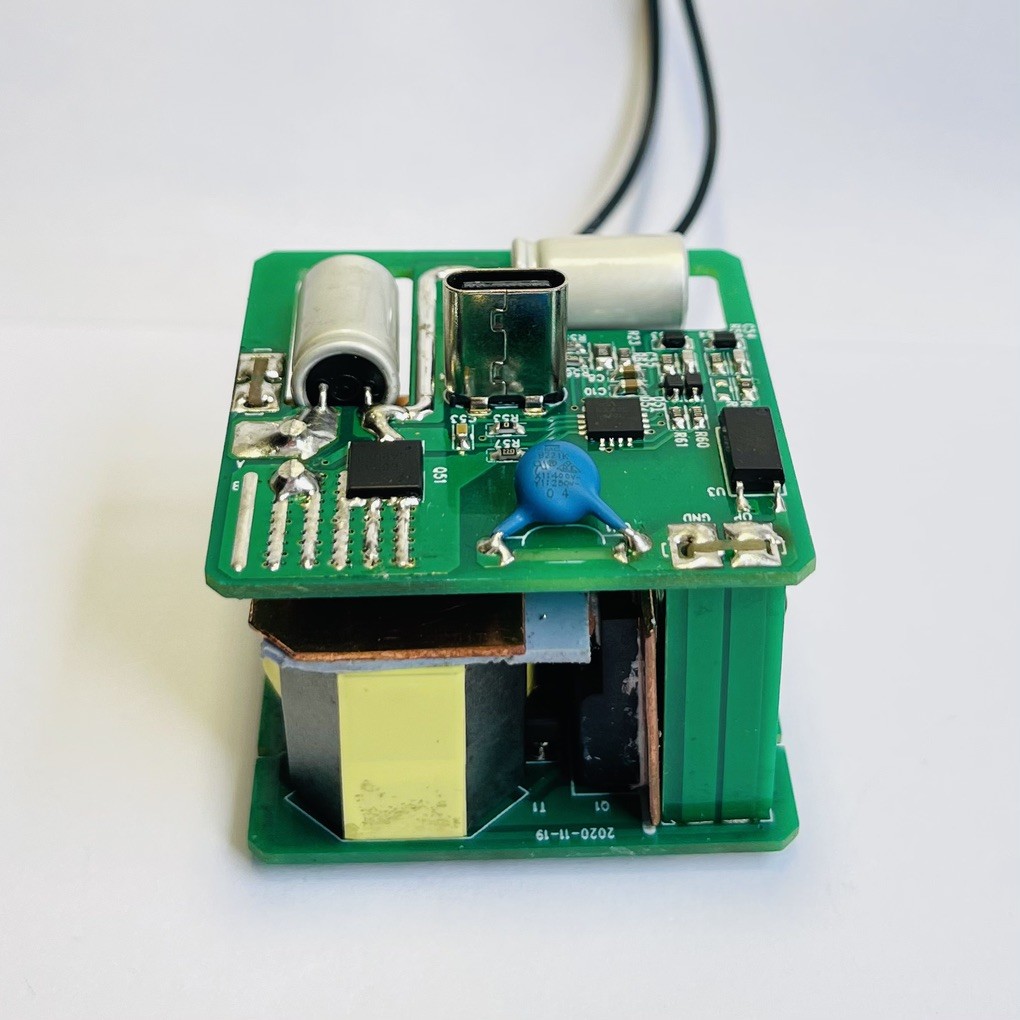

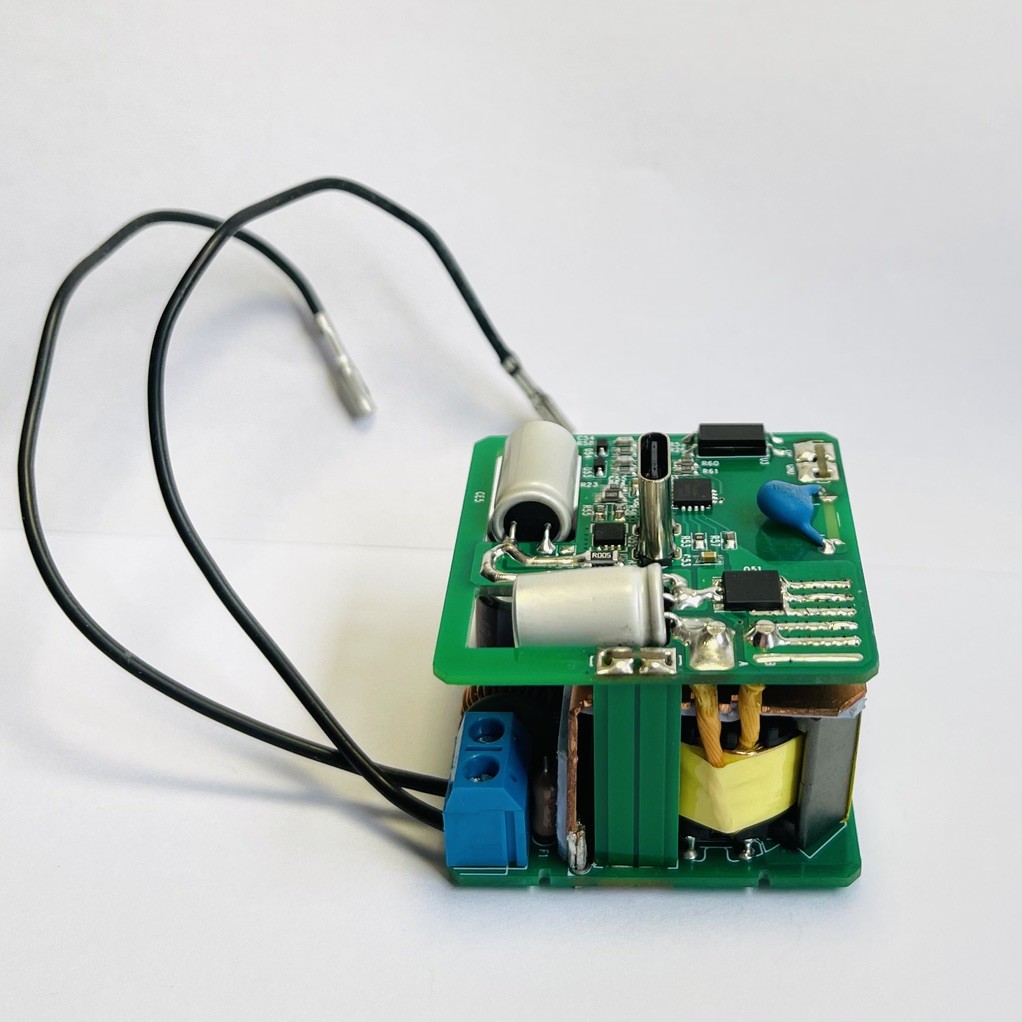

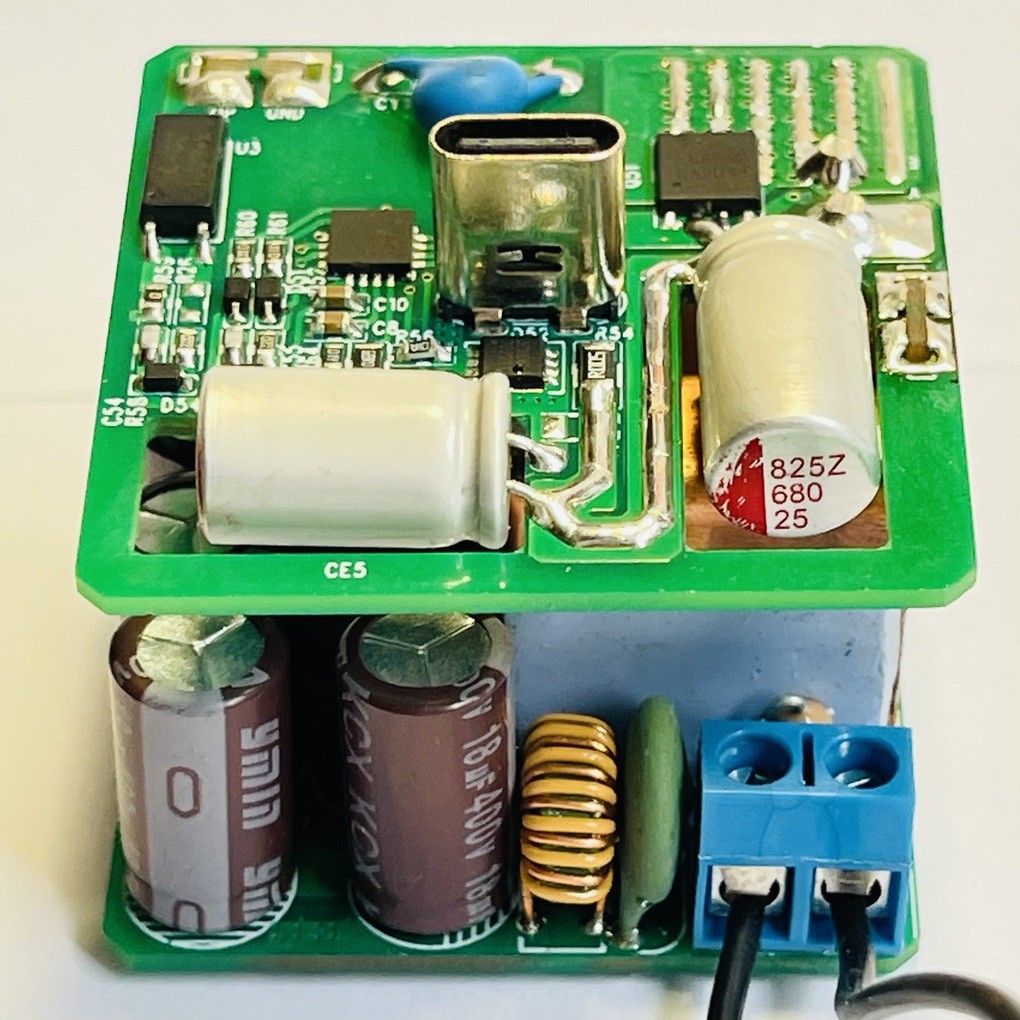

FCC 65W Open Frame Isolated Switching Power Supply Module

Minimum Order Quantity : 1000pcs Price : Negotiable
Packaging Details : ESD packagings Delivery Time : 2-4weeks
Payment Terms : Western Union, T/T,, L/C Supply Ability : 20K per day
Place of Origin: China Brand Name: APS
Certification: CE, FCC, Engery Star, DOE Model Number: APS-CB2018

Detail Information

Model No: APS-CB2018 Product Name: 65W Isolated Switching Power Supply Module
Input: AC100V-240V(Standard) Output1: USB C 5V 3A/9V 3A/12V 3A/15V 3A/20V 3.25A
OEM&ODM: Available Efficiency: 85%-90%
Application1: OEM Switch Power Module Application2: Ac Dc Power Supply Module
Application3: 5V 9V 12V 15V 20V Pcb Assembly Services Power Mould Application4: 5V 9V 12V Power Supply Module Board
High Light:

65W Power Supply Module


FCC Open Frame Power Supply Module


65W Isolated Switching Power Supply Board

Product Description

65W Isolated Switching Power Supply AC-DC 220V to 5V 9V 12V Power Supply Module Board AC/DC Open Frame Power Supply


65W Isolated Switching Power Supply module with universal input voltage: 85-264V AC or 110-370V DC The product is easy to install, can be used directly on the motherboard board. 5V 9V 12V Power Supply Module Board with high efficiency, high power density, low output ripple noise, high output voltage accuracy.Input and output of Open Frame Power Supply are highly isolated. Switch Power Module Bare Circuit Board Pcba with Intelligent Output, When equipment is fully charged, it will stop charging automatically to prevent from overcharging. 65w Ac Dc Power Supply Module is designed with overcharge, overdischarge, short circuit protection, does not need to worry about the time of charging.Power Module Bare Circuit Board has multipke safe designs.Output voltage and current is stable, never to damage user's device.


Working temperature: -20 degrees to 70 degrees, the advanced capacitor temperature is 105 degrees 10,000 hours, 70 degrees is greater than 5 years, and normal temperature is about 20-50 years (not recommended for use above 70 degrees).

Input characteristics:

Input voltage range: AC100V-240V

No-load power: <0.05W

Output characteristics: Multiple voltage modules can be used in parallel to meet the needs of large currents in small spaces.

Output current: 5V 9V 12V 15V  20V

Output power: 65W, efficiency is about 85%

Output protection: over voltage, over current, over temperature, over work, short circuit protection, etc.


Note: We have the shell of it to sell , if you need it , contact us please.




Model No APS-CB2018

Wall Charger, Fast Charger, Quick charger 3.0 Charger

PD charger, Travel adapter, Universal Adapter, Multi USB chargers, Type C charger and so on…..


Technology Fast Charge, QC 3.0 if you need


Output 65W
USB C 5V 3A/9V 3A/12V 3A/15V 3A/20V 3.25A
Efficiency(Full load) 85-90%
Safety Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Over Hot Protection

Burn in 100%
MTBF 5000Hours


FCC 65W Open Frame Isolated Switching Power Supply Module 0


Lead time:


Quantity(piceces) 1k~30K 30K~50K 50k~100k over 100k
Lead time 20 work days 30 work days 40 work days Negotiation

Shipping :


1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged

during delivery.


Why Choose us


1. 10 years OEM&ODM factory experiences in Power solutions.

2. Licensed MFI Apple factory

3. Specialized in Mobile Phone Accessories,including Apple MFi car Charger, iphone charger, Wireless

Chargers, wall charger, laptop power supply adapters and so on…

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation


Any other concerns, welcome to send your request to email.

Your feedback is the most important for us.
