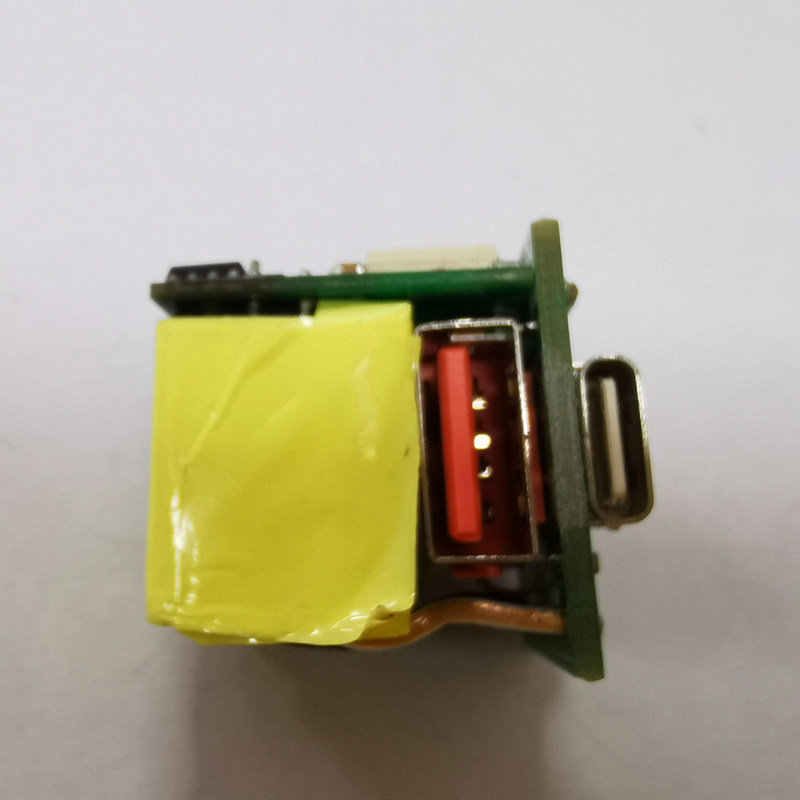

AC-DC PD20W Isolated Power Supply Module Buck Step Down Converter Switching Bare Board 220V To 5V 9V 12V

Minimum Order Quantity : 1000pcs Price : Negotiable
Packaging Details : ESD packagings Delivery Time : 2-4weeks
Payment Terms : Western Union, T/T,, L/C Supply Ability : 20K per day
Place of Origin: China Brand Name: APS
Certification: CE, FCC, Engery Star, Doe, Model Number: APS-CB2024

Detail Information

Model No: APS-CB2024 Product Name: AC-DC PD20W Isolated Power Supply Module
Input: AC100V-240V(Standard) Output1: USB A 5V 2.4A
Output2: USB C 5V/9V/12V(PD20W) OEM&ODM: Available
Efficiency: 85%-90% Application1: 20w Switching Bare Board
Application2: PD Isolated Power Supply Module Application3: Bare Circuit Board 5V 9V 12V
High Light:

Bare PCB For Step Down Converter


Bare PCB 20W


12V Bare Circuit Board

Product Description

AC-DC PD20W Isolated Power Supply Module Buck Step Down Converter Switching Bare Board 220V To 5V 9V 12V


1. The product is easy to install.
2. Universal input voltage: 100-240V AC
3. High efficiency, high power density, low output ripple noise.
4. High input and output isolation.
5. Over current protection, short circuit protection and temperature protection.
6. Quick start





Model No APS-CB2024

Wall Charger, Fast Charger, Quick charger 3.0 Charger

PD charger, Travel adapter, Universal Adapter, Multi USB chargers, Type C charger and so on…..

Technology Fast Charge, QC 3.0 if you need


Contact us for more wider range.

Output 20W
USB A 5V 2.4A
USB C 5V 3A, 9V 2.22A, 12V 1.67A
Efficiency(Full load) 85-90%
Safety Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Over Hot Protection

Burn in 100%
MTBF 5000Hours


Lead time:


Quantity(piceces) 1k~30K 30K~50K 50k~100k over 100k
Lead time 20 work days 30 work days 40 work days Negotiation

Shipping :


1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged

during delivery.


Why Choose us


1. 10 years OEM&ODM factory experiences in Power solutions.

2. Licensed MFI Apple factory

3. Specialized in Mobile Phone Accessories,including Apple MFi car Charger, iphone charger, Wireless

Chargers, wall charger, laptop power supply adapters and so on…

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation



Any other concerns, welcome to send your request to email.

Your feedback is the most important for us.
