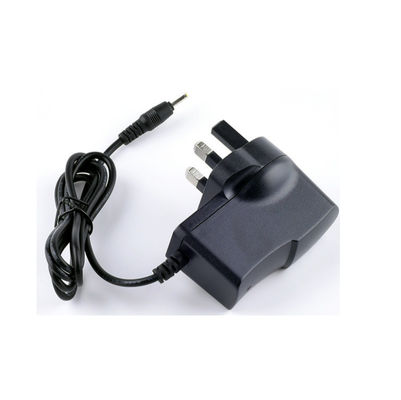

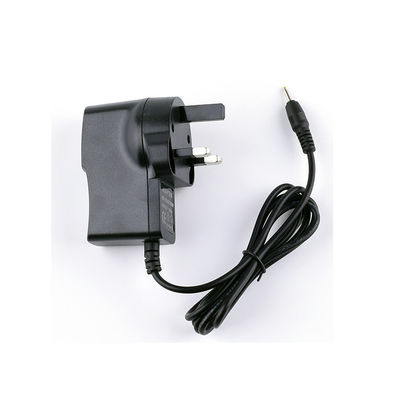

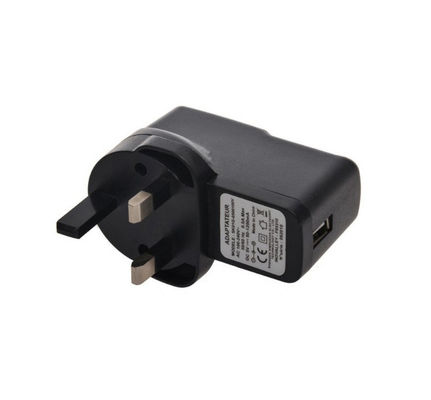

20V 0.5A AC DC Wall Mount Adapter

Product Details:
Place of Origin: Made in China
Brand Name: APS
Certification: CE(EMC/LVD), FCC, DOE,CEC,Engery Star
Model Number: APS-PS1030
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Color box
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T,, L/C
Supply Ability: 30k per day

Detail Information

Model No: APS-PS1030 Product Name: 20v 0.5a Ac Dc Wall Mount Adapter
Material: ABS&PC Fireproof Material Color: Black Or White Optional
Input: AC100V-240V Output: DC 20V/0.5A
Output Power: 10W MTBF: 5000 Hours
Burn In Test: 100% OEM&ODM: Acceptable
DC Connector: 2.5x0.7 / 3.5x1.35/ 4.0x1.7/5.5x2.1/5.5x2.5/mocro...... Key Function1: Universal AC Adapter For Mopping Machine/Humidifier
Key Function2: Country Adapter Plugs For Router/Massage Chair/Camera Etc. Key Function3: Switching Power Supply For Speaker/ HUB /video/IP Camera....
High Light:

0.5A AC DC Wall Mount Adapter


20V AC DC Wall Mount Adapter


20V Universal Switching Power Adapter

Product Description

20v 0.5a Ac Dc Wall Mount Adapter Universal Switching Power Adapter Switching Mode Power Adapter Indicator Lighter



The safety performance is good, the reliability is high, and the safety is produced in accordance with the standards and procedures for applying for safety certification. Ultra-low no-load and standby energy loss, in line with national energy-saving standards.Good anti-interference

performance, built-in anti-electromagnetic interference filter. The input voltage range is wide, all 100-240V, in line with global standards.The primary and secondary insulation performance is good, and the high-frequency transformer is 100% vacuum impregnated. Full load high temperature burn-in, 100% burn-in test. With short circuit, over current, over voltage protection function (can be automatically restored).
All materials do not contain (and do not exceed the regulations and limits) the six toxic substances restricted in Europe: cadmium, chromium, lead, mercury, PBB, and PBDE.




Input AC100V---240V 50-60Hz
Output 20V 0.5A
Power 10W
Plug type EU/US/UK/AU plug, other kind is also available
Material ABS fire retardant case
Start-up time <1S(input230V Io=100%)
keep time >20mS (input230V,Io=100%)
Voltage regulation (Full load) <0.5%
Overload protection 105% - 150% rated power, automatic recovery
Over-voltage protection 105% - 150% of the rated voltage
working temperature - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
Manufacturer Advanced Product Solution Technlogy Co ltd



1. With LED charging indicator

2. All plugs are available, UK/EU/US/UK/AU plug

3. Adjustable Output, please contact us.


20V 0.5A AC DC Wall Mount Adapter 020V 0.5A AC DC Wall Mount Adapter 120V 0.5A AC DC Wall Mount Adapter 2


Lead time:


Quantity(piceces) 1k~30K 30K~50K 50k~100k over 100k
Lead time 20 work days 30 work days 40 work days Negotiation


Packaging & Shipping

Shipping :

1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged

during delivery.



Why Choose us

1. 10 years OEM&ODM factory experiences in Power solutions.

2. Licensed MFI Apple factory

3. Specialized in Mobile Phone Accessories,including Apple MFi car Charger, iphone charger, Wireless

Chargers, wall charger, laptop power supply adapters and so on…

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation



Q1: How does your factory do regarding quality control?

A: All the proudcts are designed with best materials. NO CHEATING.

We have 3 full inspections during mass production,

Q2: How long does delivery take?

A: Sample lead time: 1-7 days.
Bulk orders lead time: In stock: Ready for delivery.
Bulk orders lead time: Out of stock: About 20-45 days

Q3: How long is the warranty period?

Our products come with 1-year manufacturer's warranty.

Q4: How to order in bulk?

Step 1: Choose models and products you wanted and confirm the samples and other printing information.
Step 2: Send us a PO and we'll make a PI for you to confirm the order details.
Step 3: Arrange the payment after we confirm your order.
Step 4: Delivery your goods after finish mass production.


Any other concerns, welcome to send your request to email.

Your feedback is the most important for us.



Get in touch with us

Enter Your Message
