500mA 24V Switching Power Supply Adapter Wall Mount Universal DC Power Supply Adapter

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : Color box Delivery Time : 5-8 working days
Payment Terms : Western Union, T/T,, L/C Supply Ability : 30k per day
Place of Origin: Made in China Brand Name: APS
Certification: CE(EMC/LVD), FCC, DOE,CEC,Engery Star Model Number: APS-PS1031

Detail Information

Model No: APS-PS1031 Product Name: 24 Volt Dc Power Supply
Material: ABS&PC Fireproof Material Color: Black Or White Optional
Input: AC100V-240V Output: DC24V/500mA
Output Power: 12W MTBF: 5000 Hours
Burn In Test: 100% OEM&ODM: Acceptable
DC Connector: 2.5x0.7 / 3.5x1.35/ 4.0x1.7/5.5x2.1/5.5x2.5/mocro...... Key Function1: Universal AC Adapter For Mopping Machine/Humidifier
Key Function2: Country Adapter Plugs For Router/Massage Chair/Camera Etc. Key Function3: Switching Power Supply For Speaker/ HUB /video/IP Camera....
High Light:

500mA Switching Power Supply Adapter

,

12W DC Power Supply Adapter

,

500mA DC Power Supply Adapter

Product Description

24V 500mA switching power supply adapter wall mount universal dc power supply adapters UK plug switching mode adapter



Overview



 Input and output: 100-240V AC input 50/60HZ, DC 24V 0.5Amp output, 12W maximum power. US plug size: inner diameter 2.5mm, outer diameter 5.5mm, internal positive pole, external negative pole, please confirm the voltage and current, plug size, and positive and negative polarity before purchasing. Overcurrent protection, overvoltage protection, overcharge protection, short circuit protection. LED light bars, wireless routers, ADSL modems, hubs, switches, surveillance cameras, etc.100% load test, damage rate is always kept within three thousandths



Specifications



Specification UK Standard ac dc adaptor 24v 500ma 24 volt dc power supply 24vdc
AC Input Voltage 100-240V AC
Input current 0.6A AC
Frequency 50-60 Hz
Efficiency 85% typical
DC Output Voltage 24V
Current 0-1000mA
Rated Power 24W Max
Ripple&noise 80mvp-p
Setup rise hold up time 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
Protection Over Load 120%Max, hiccup mode auto recovery after fault condition is removed
Short Circuit Auto recovery
Environment Store Temperature -20-85°C
Wokring Temperature 0--50°C
Operating Humidity 20%-80%RH
Certifications CE EN 60950-1:2006; EN60065-6-3:2001; EN 55022:2006+A1:2007
EN61558-6-1:2001; EN55024:1998+A1:2000+A2:2003
UL UL 60950-1 ;CSA C22.2 No. 60950-1-07
SAA AS/NZS 60950.1:2011 & AS/NZS 3112:2011
PSE J60950-1(H22) and J55022(H22)
cTUVus UL 60950-1:2001;CAN/CSA-C22.2 No.60950-1:2007
CCC GB 4943-2001
others Product dimension 50*40.9*26.4mm
Packing 1/PC/White box 100PCS/CTN
DC connector size USB
Manufacturer Advanced Product Solution Technlogy Co ltd



Features



1. Uk Adapter,Input Voltage : AC 100-240V,50-60Hz (Worldwide AC Input)

2.Output : 5V 1A/1000mA Max (Also Compatible with 650mA or lower device)

3.Connecter Size : fits for both 5.5mm x 2.5mm and 5.5mm x 2.1mm plug ,Wire Length:Approx. 2.8Ft / 86cm

4. I/C Chip Technology To Protect Your Device: Over Voltage Protection, Over Heat Protection,Over Current Protecion

5.The Charger Applicable With:Router,humidifier, air cleaner, electronic refrigerator, LCD monitor, LED lighting, communications equipment, audio and video products, security, computer case and the other digital products which requre 5.5*2.5 mm plug

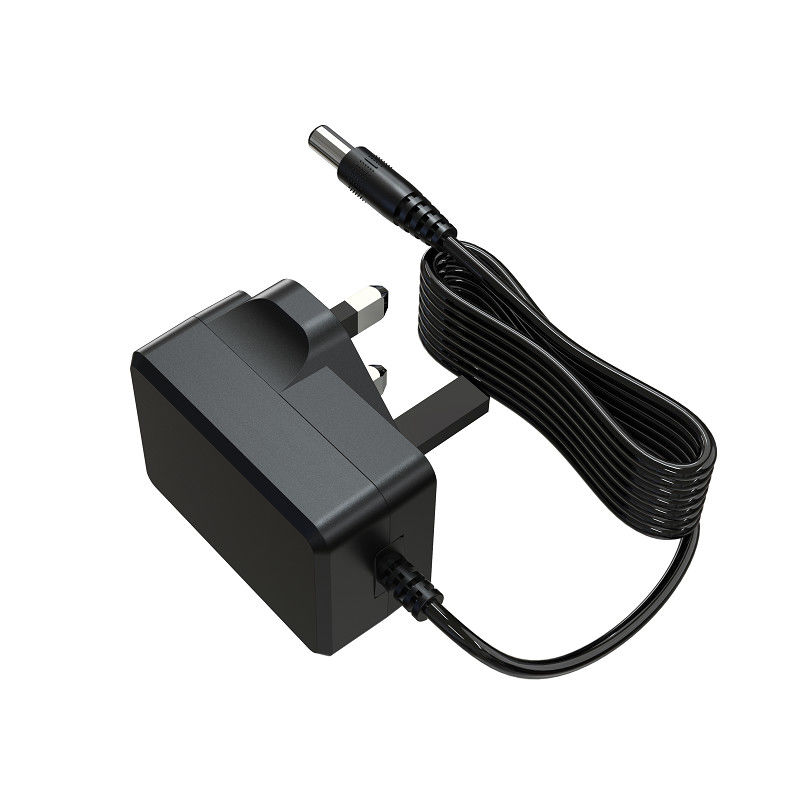

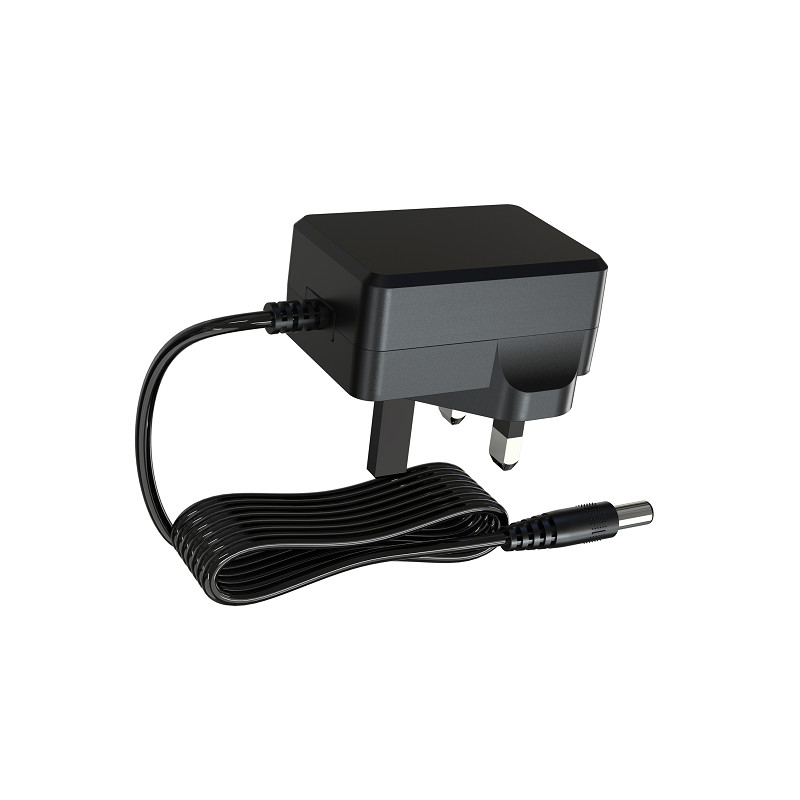

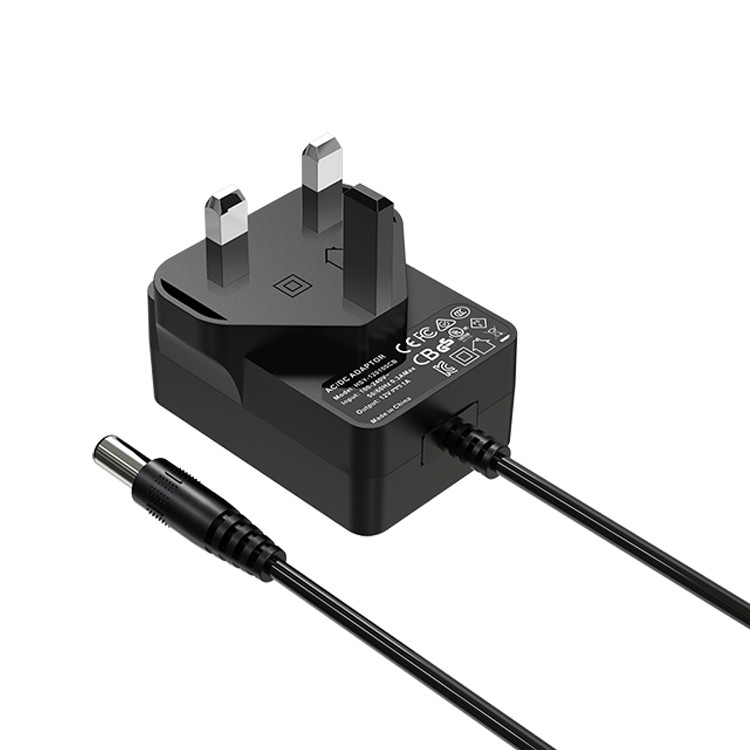

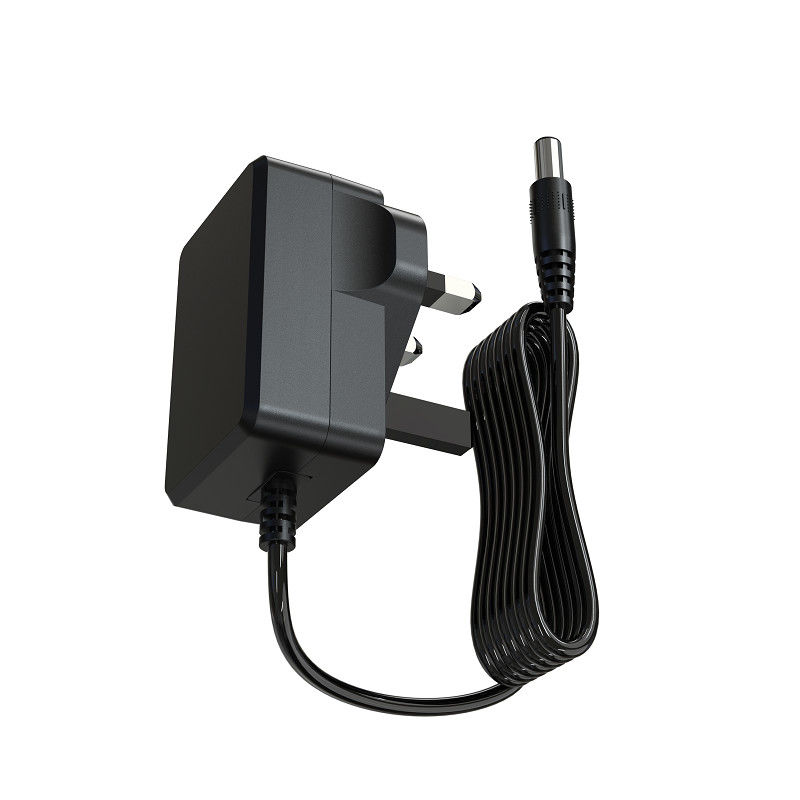

500mA 24V Switching Power Supply Adapter Wall Mount Universal DC Power Supply Adapter 0500mA 24V Switching Power Supply Adapter Wall Mount Universal DC Power Supply Adapter 1



Lead time:



Quantity(piceces) 1k~30K 30K~50K 50k~100k over 100k
Lead time 20 work days 30 work days 40 work days Negotiation



Packaging & Shipping


Shipping :


1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged

during delivery.





Why Choose us

1. 10 years OEM&ODM factory experiences in Power solutions.

2. Licensed MFI Apple factory

3. Specialized in Mobile Phone Accessories,including Apple MFi car Charger, iphone charger, Wireless

Chargers, wall charger, laptop power supply adapters and so on…

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation



RFQ

Q1: How does your factory do regarding quality control?

A: All the proudcts are designed with best materials. NO CHEATING.

We have 3 full inspections during mass production,


Q2: How long does delivery take?

A: Sample lead time: 1-7 days.
Bulk orders lead time: In stock: Ready for delivery.
Bulk orders lead time: Out of stock: About 20-45 days


Q3: How long is the warranty period?

Our products come with 1-year manufacturer's warranty.


Q4: How to order in bulk?

Step 1: Choose models and products you wanted and confirm the samples and other printing information.
Step 2: Send us a PO and we'll make a PI for you to confirm the order details.
Step 3: Arrange the payment after we confirm your order.
Step 4: Delivery your goods after finish mass production.



Any other concerns, welcome to send your request to email.

Your feedback is the most important for us.
