ODM PCB Prototype And Assembly

Product Details:
Place of Origin: China
Brand Name: APS
Certification: CE, FCC, Engery Star, Doe,
Model Number: APS-CB3000
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: ESD packagings
Delivery Time: 2-4weeks
Payment Terms: Western Union, T/T,, L/C
Supply Ability: 20K per day

Detail Information

Model No: APS-CB2011 Product Name: Custom Pcb Prototype And Assembly
Input: N/C Output: N/C
OEM&ODM: Available Efficiency: N/C
Application1: Customized PCBA Prototype And Assembly Application2: Power Supply Bare Circuit Board
Application3: OEM Board Mould Pcba Circuit Board Application4: Quick Charger 3.0, PD, Fast Charge,GAN
High Light:

ODM PCB Prototype And Assembly


FCC PCB Prototype And Assembly


ODM PCBA Circuit Board

Product Description

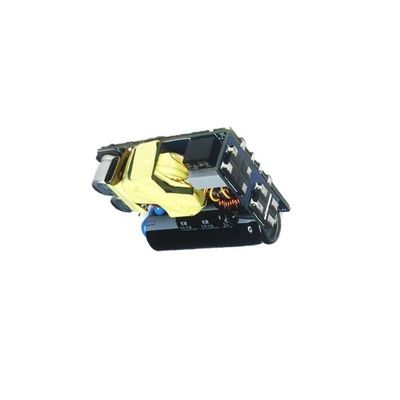

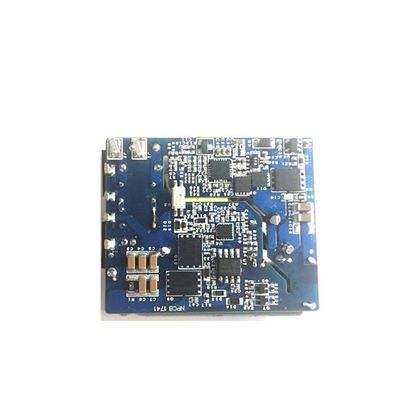

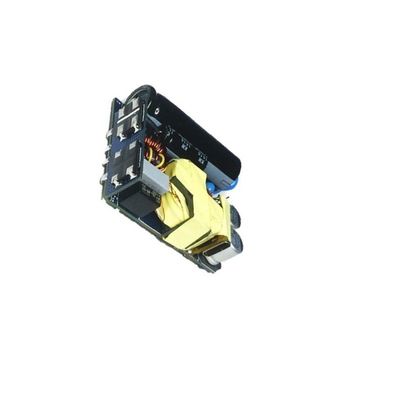

Custom Pcb Prototype And Assembly Bare Circuit Board Gan Charger Power Supply Board Mould Pcba Circuit Board




Bare Circuit Board Gan Charger design for a 65-W PD charger targeting consumer electronics, such as smartphones and laptops. The design addresses the consumer demand for smaller, lighter, and faster chargers by leveraging the benefits of GaN technology, including high switching speed, low on-resistance.


Power Supply Board Mould Pcba Circuit Board design enables power system designers to develop high-performance charging products with fewer redesigns, reduced PCB design spins, and less trips to the lab for testing. Key specifications of the design include an input voltage range of 90 V to 264 V 50-60 Hz; maximum output power of 65 W; power density of 18.5 W/in.3 (with case); and output voltage and current of 5 V, 3 A; 9 V, 3 A; 12 V, 3 A; 15 V, 3 A; and 20 V, 3.25 A.


Gan Charger Power Supply Board Mould with High power, this Single USB C Charger PCB with 100V/250V AC input, provides Type-C PD port True support BC1.2/DCP & QC2.0/QC3.0 & AFC/FCP/SCP & CC & PD3.0 PPS.

The innovative, high-performance universal Laptop Charger 65W Pcb Prototype And Assembly Bare Circuit Board allows for one of the fastest and most efficient charging experiences for cell phone.

  • USB C (Type-C) port with power delivery
  • USB-C with Power Delivery enable up to 65W.Power Delivery (PD) Integration: the built-in PD Chipset dynamically detects devices to deliver optimum power level for maximum battery life and performance. Equips with the advance circuit protections to prevent over charging.

The USB C Charger 65W Power Supply Board Mould supports full-featured PD profiles on USB 3.1 Type-C Port 65Watt maximum output. Multiple built-in Safeguards that fully protect against overcharging, overheating, over voltage, overload, short-circuiting and childproof design.



  • High density and high efficiency
  • Low total BOM cost
  • Passes Safety and EMI test
  • Supports PD3.0, PPS, QC, QC4.0+, BC1.2
  • Comprehensive protection: OVP, OCP, SCP and open loop




Model No.: Custom PCBA

Wall Charger, Fast Charger, Quick charger 3.0 Charger, Gan Charger

PD charger, Travel adapter, Universal Adapter, Multi USB chargers, Type C charger and so on…..

Technology Fast Charge, QC 3.0, PD, GAN


Output N/C


Efficiency(Full load) N/C
Safety Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Over Hot Protection

Burn in 100%
MTBF 5000Hours


ODM PCB Prototype And Assembly 0


Lead time:


Quantity(piceces) 1k~30K 30K~50K 50k~100k over 100k
Lead time 20 work days 30 work days 40 work days Negotiation

Shipping :


1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged

during delivery.


Why Choose us


1. 10 years OEM&ODM factory experiences in Power solutions.

2. Licensed MFI Apple factory

3. Specialized in Mobile Phone Accessories,including Apple MFi car Charger, iphone charger, Wireless

Chargers, wall charger, laptop power supply adapters and so on…

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation



Any other concerns, welcome to send your request to email.

Your feedback is the most important for us.
