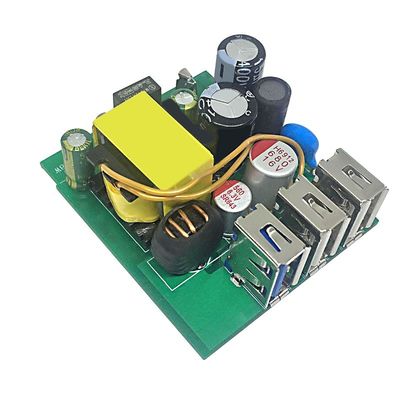

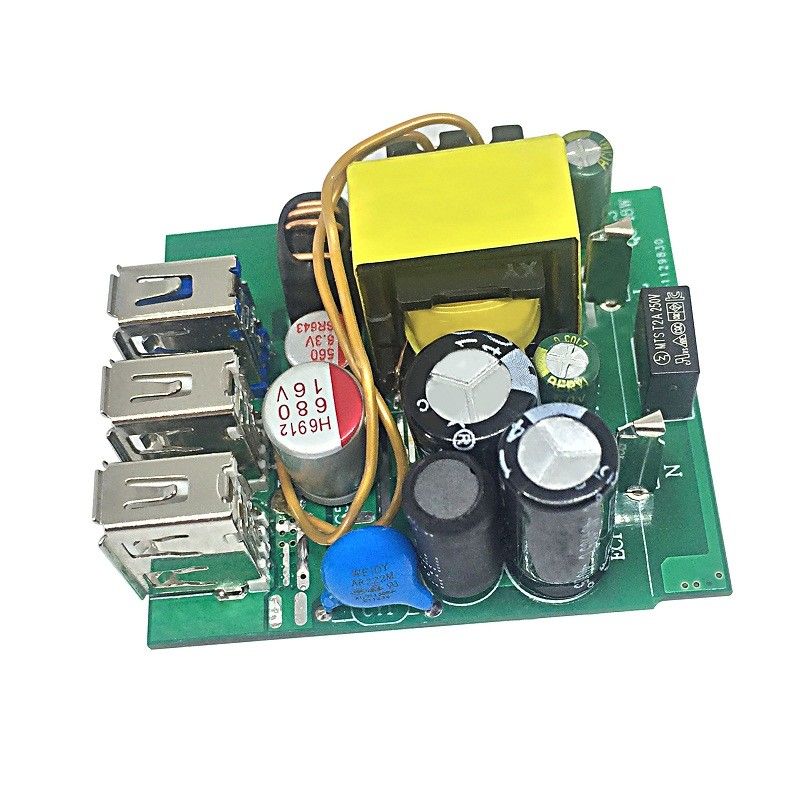

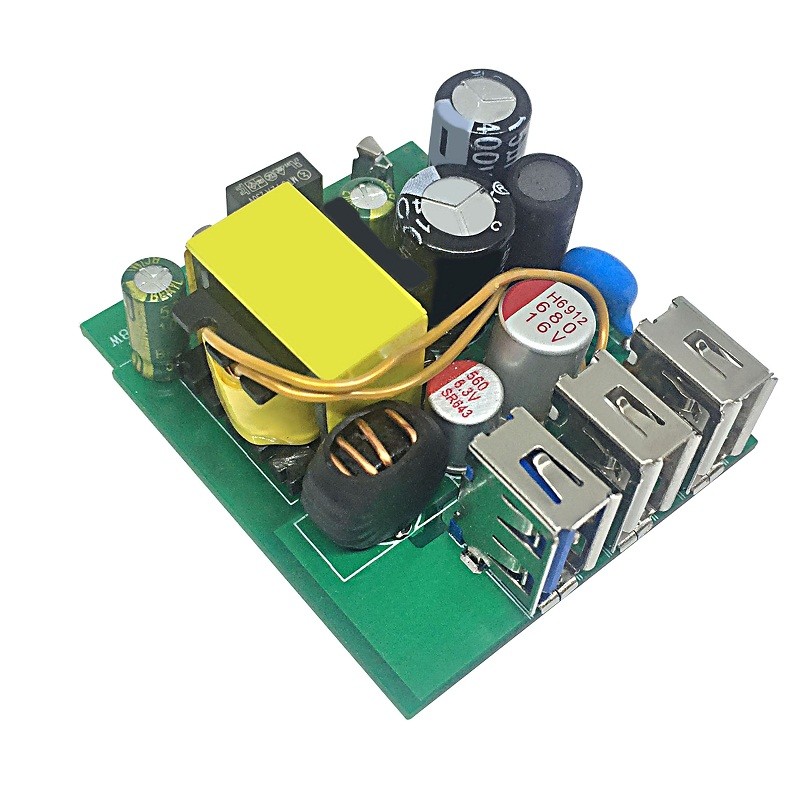

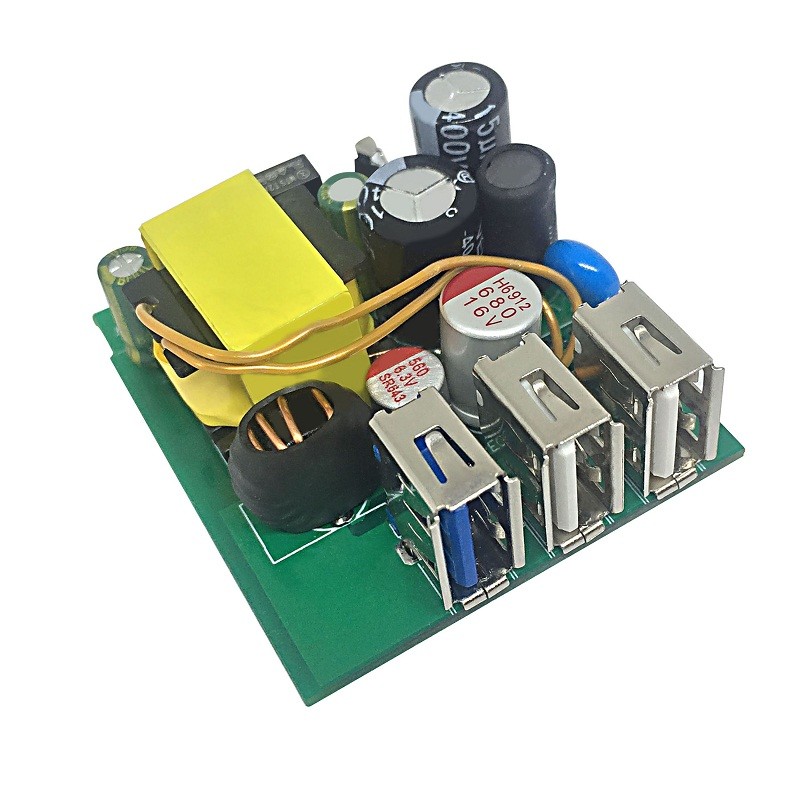

30w Switching Power Supply Module Bare Printed Circuit Board Step Down Module

Product Details:
Place of Origin: China
Brand Name: APS
Certification: CE, FCC, Engery Star, Doe,
Model Number: APS-CB0012
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: ESD packagings
Delivery Time: 2-4weeks
Payment Terms: Western Union, T/T,, L/C
Supply Ability: 20K per day

Detail Information

Model No: APS-CB0012 Product Name: 30W
Input: AC100V-240V(Standard) Output1&2: USB A1&2 5V 2.4A
Output3: USB3 5V 3A/9V 2A/12V 1.5A OEM&ODM: Available
Efficiency: 85%-90% Application1: 5V 9V 12V Switching Power Supply Board
Application2: QC 3.0 High Power Module Bare Board Application3: AC-DC Power Supply Module Pcb Board Design
High Light:

30w Switching Power Supply Module

,

FCC Switching Power Supply Module

,

30w Bare Printed Circuit Board

Product Description

30w Switching Power Supply Module Bare Circuit Board Step Down Module 3 Usb Charger Printed Circuit Board Assembly



Overview



The Compact 30W USB charger PCBA  Bare Boardis built in protection IC, overcurrent, overvoltage, undervoltage protection. Quick Charge 3.0 fast charger  Switch Power Bare Board  offers Intelligent output device after charging full, automatically stop charging, to prevent mobile phones overcharge. , make your own design to compete any other common wall charger in the market.

This pcba is widely used for your any designs of medical power supply, wall charger, AC to DC power supply device, USB wall charger, European adapter, US charger, UK adapter, India adapter, any travel adapters.

Welcome to contact us for you design your brand fast charger with customized outputs and interface. The Ultra compact ensure maximum portablitly when you This pcba is widely used for your any.

Recommend professional installation.



Specification:



Specifications
Model No APS-CB0012
Applications

European Adapter,Australian Charger

UK Adapter, India charger, Travel Adapter,

Type C charger, Multi USB chargers, and so on……

Technology Fast Charge, QC 3.0 if you need
Input

AC100V-240V(Standard)

Contact us for more wider range.

Output 12W
USB A1&A2 2.4A/5V;USB A3 3A/5V,2A/9V,1.5A/12V
Efficiency(Full load) 85-90%
Safety Protection

Over Voltage Protection

Over Current Protection

Short Circuit Protection

Over Hot Protection

Burn in 100%
MTBF 5000Hours



Features



1. Switching Power Supply Board is easy to install, and the input and output are adjustable voltage and current

2. Switching Power Supply Module AC100V-240V  universal input voltage , If you need more wider range, please contact us.

3. High efficiency, high power density and low output ripple noise.

4. High isolation between input and output.

5. Over current protection, short circuit protection and temperature protection.

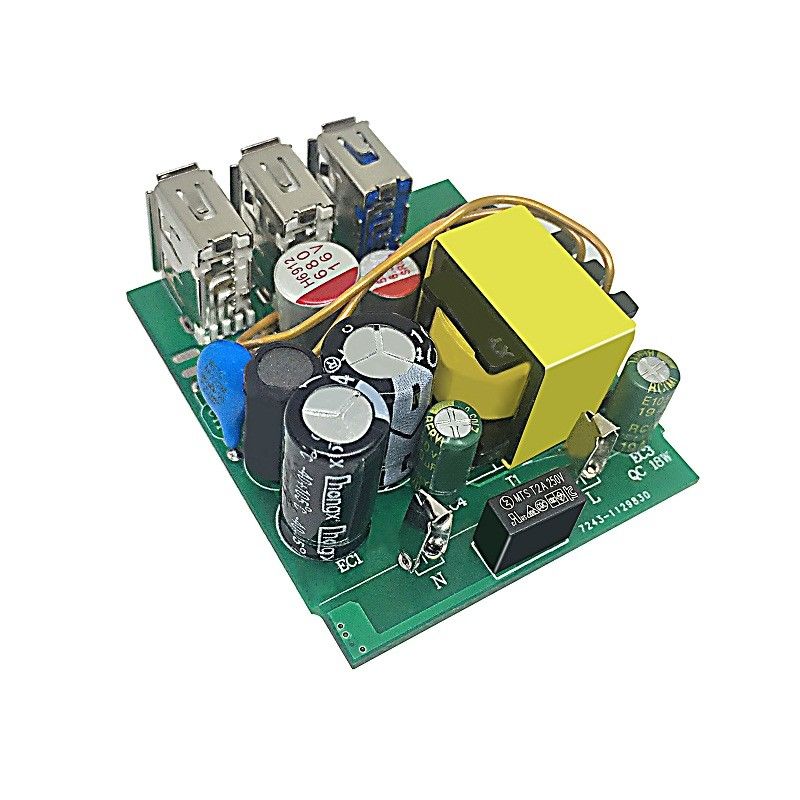

 30w Switching Power Supply Module Bare Printed Circuit Board Step Down Module 0



Lead time:



Quantity(piceces) 1k~30K 30K~50K 50k~100k over 100k
Lead time 20 work days 30 work days 40 work days Negotiation


Shipping :



1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4. We choose the best and safe packaging material to make sure your orders won't be damaged

during delivery.



Why Choose us



1. 10 years OEM&ODM factory experiences in Power solutions.

2. Licensed MFI Apple factory

3. Specialized in Mobile Phone Accessories,including Apple MFi car Charger, iphone charger, Wireless

Chargers, wall charger, laptop power supply adapters and so on…

4. Strict QC team control quality

5. OEM/ODM service

6. Small MOQ support

7. Quick Delivery Time

8. Warranty 12 months after-service

9. Continul Technical innovation





Any other concerns, welcome to send your request to email.

Your feedback is the most important for us.
